Motion Height Adjustable Workstation – Round Leg

From$1,105.00 ex GST

All sections are Mandatory

Free Space Plan

Expert Advice

Up to 10yr Warranty

Quality Focus

Delivery & Assembly

Additional Information:

Options: 1500 x 1500 x 750 with Cable Tray, 1800 x 1800 x 750 with Cable Tray, 1500 x 1800 x 750 with Cable Tray, 1500 x 1500 x 750 w/o Cable Tray, 1800 x 1800 x 750 w/o Cable Tray, 1500 x 1800 x 750 w/o Cable Tray, 1500 x 1500 x 750 with Arms and Screen Brackets w/o Cable Tray, 1800 x 1800 x 750 with Arms and Screen Brackets w/o Cable Tray, 1500 x 1800 x 750 with Arms and Screen Brackets w/o Cable Tray
Colors: Black/White, White/White, Black / Natural Oak, Black/Wild Oak, White / Natural Oak, White/Wild Oak

Features:

  • Triple Motor Frame
  • Triple stage lifting system
  • Capable of lifting 180kg at 38mm per second
  • 3 Stage slim round leg design
  • Height range of 665mm to 1315mm with 25mm top
  • Slim foot profile reduces trip hazard
  • 25mm thick worktop with cable scallop
  • Stocked 1500 x 1800 x 750 has the scallop and cable tray on the 1500 side only
  • Frame with Cable and without Tray is suitable for tops 1500 and 1800 wide and minimum 700mm deep
  • Cable Tray and Arms always include Screen Brackets

Controller:

  • Digital display shows the height of the desk
  • Mounted under tabletop
  • 3 Height memory presets
  • Dual USB charges included in control panel

Dimensions:

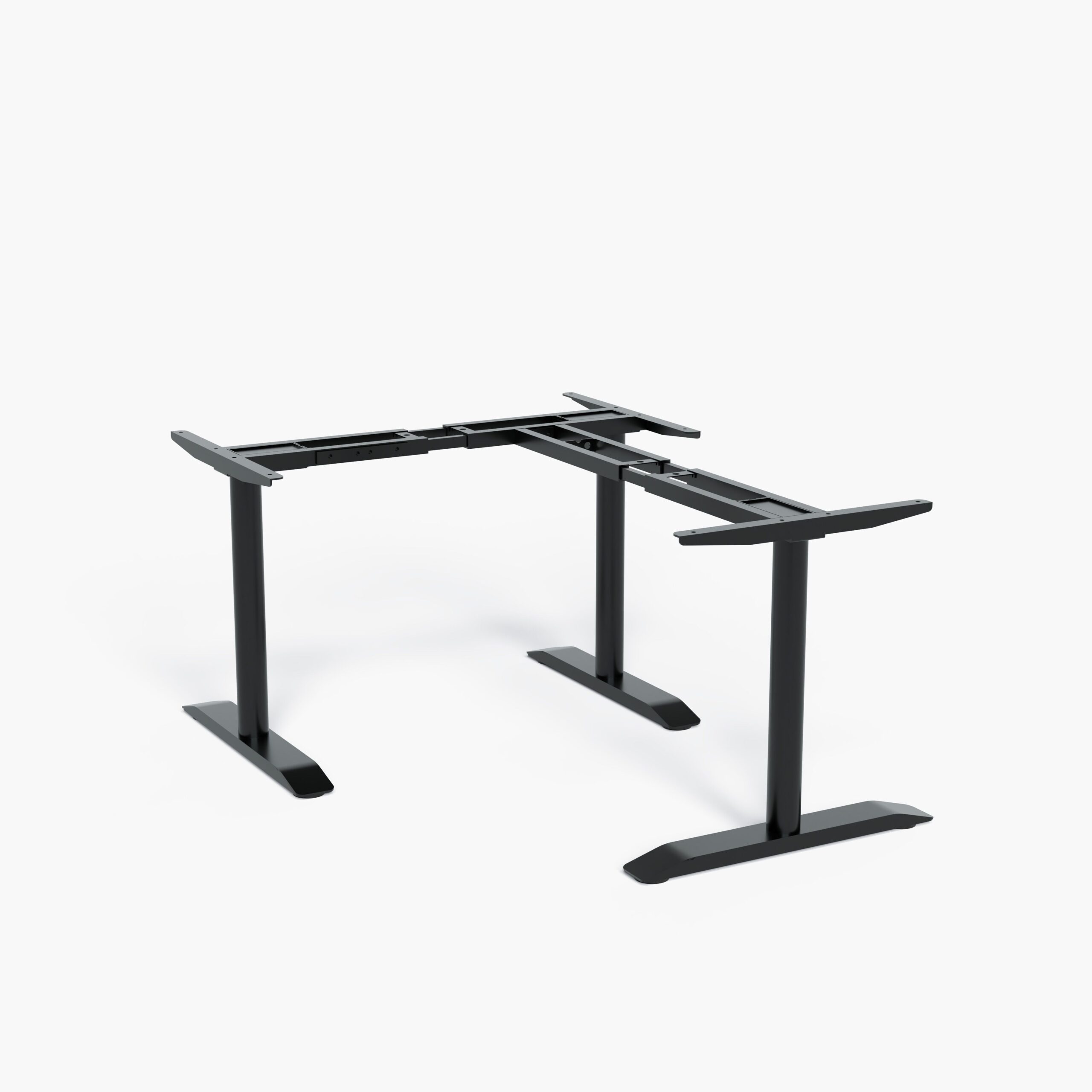

EDR-3-WST-F: Corner Frame ONLY
2 Cartons: 59kg
(A) 875 x 475 x 140 33kg / 0.058m3
(B) 1375 x 315 x 195 26kg / 0.084m3

Product Options:

EDR-3-C-15: 1500 x 1500 x 750 with Cable Tray
EDR-3-C-18: 1800 x 1800 x 750 with Cable Tray
EDR-3-C-1518: 1500 x 1800 x 750 with Cable Tray

EDR-3-15: 1500 x 1500 x 750 w/o Cable Tray
EDR-3-18: 1800 x 1800 x 750 w/o Cable Tray
EDR-3-1518: 1500 x 1800 x 750 w/o Cable Tray

EDR-3-A-15: 1500 x 1500 x 750 with Arms and Screen Brackets w/o Cable Tray
EDR-3-A-18: 1800 x 1800 x 750 with Arms and Screen Brackets w/o Cable Tray
EDR-3-A-1518: 1500 x 1800 x 750 with Arms and Screen Brackets w/o Cable Tray

EDR-3-C-F15: Frame Only 1500 x 1500 x 750 with Cable Tray
EDR-3-C-F18:Frame Only 1800 x 1800 x 750 with Cable Tray
EDR-3-C-F1518: Frame Only 1500 x 1800 x 750 with Cable Tray
EDR-3-WS: Frame Only 1500 x 1500 x 750 w/o Cable Tray
EDR-3-A-F: Frame Only 1500/1800 X 750 with Arms and Screen Brackets w/o Cable Tray

Lead Time: 3-5 Business Days

Also Available in the Laminex Range of Colours <Click Here>
